Single girder bridge crane

LDP model single beam bridge crane

Capacity: 3~16ton
Span: 7.5~22.5m
Lifting height: 6~12m
Duty class: A3
Product description: LDP model single beam bridge crane
INQUIRY

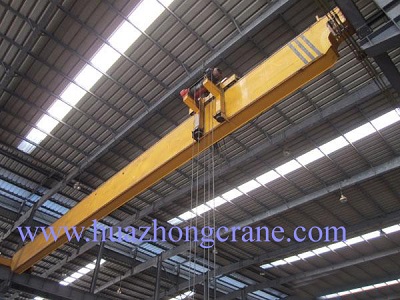

LDP model single beam bridge crane is a low headroom type crane, the electric hoist is traveling on one side of main beam, so it can increase service space of hook and reduce the construction cost of workshop. This crane has advantages of big trolley tread, smooth travelling, tight structure, strong rigidity, delicate operation, low noise, safety and reliability and beautiful exterior, it is widely used in workshop that the headroom is very low.

This single beam bridge crane is used together with CD1, MD1 model wire rope electric hoist, the capacity from 3ton to 16ton, the span is 7.5m~22.5m, the duty class is A3, the working temperature is -25~+45℃, the control type is pendant pushbuttons or remote control.
